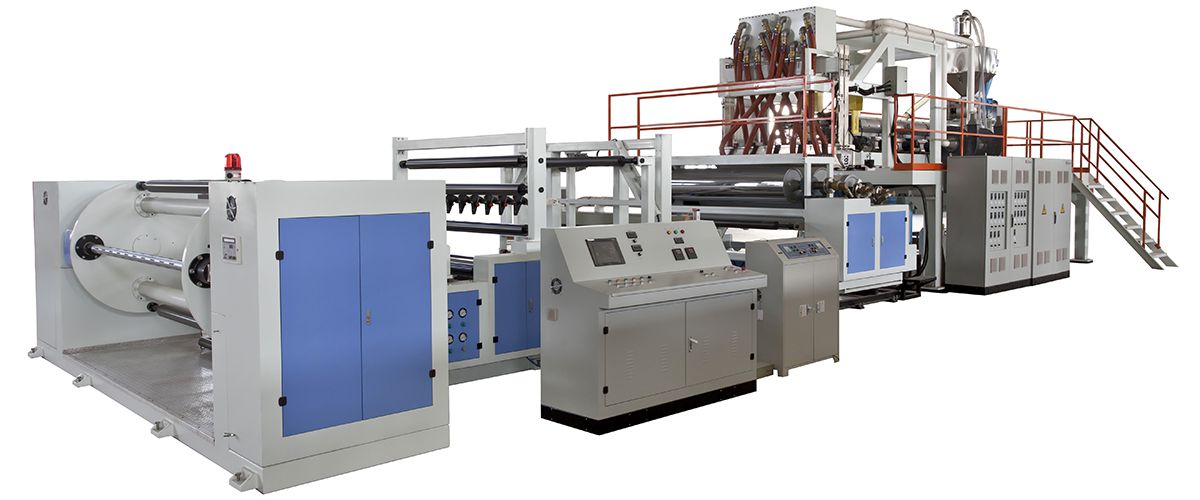

Cast Embossed Film Line

By using raw materials of LDPE, LLDPE, HDPE, PP or EVA, the cast embossed film line produces flat or embossed films, which will be applied in hygiene, medicine and packaging industry. The most optimized designs of extruder and T die guarantees high-performance extrusion, and various levels of features and automation are available to best meet your needs.

The extruder of the production line converts polymers into continuous melt resin which are then formed into film structure by T die. Through the cast film extrusion system, an embossing steel roll and silicon rubber roll are equipped at the casting unit. The melt resin coming out of the T die is pressed onto the embossing roll by silicon roll, and in this way the embossed film is produced.

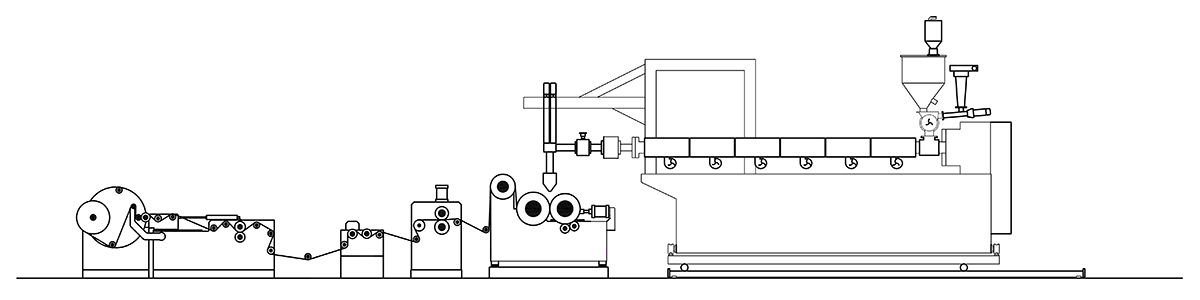

Line Layout

Application:
The production line can find its applications in hygiene and medical care, such as PE film for baby diaper, sanitary napkin, pet pad, medical dressings, grown, gloves, shoes cover, rubber release film, disposable bed sheet, table cloth and shower curtain, etc.

Technical Parameters
Model No. Screw Dia. Screw L/D Die Width Film Width Film Thickness Line Speed
FME120-1600 ¢ 120mm 36:1 1900mm 1600mm 0.02-0.15mm 180m /min
FME125-2000 ¢ 125mm 36:1 2300mm 2000mm 0.02-0.15mm 180m /min
FME135-2500 ¢ 135mm 36:1 2800mm 2500mm 0.02-0.15mm 180m /min
Remarks: The net film width of the machine model is ranging from 1200mm to 3500mm.

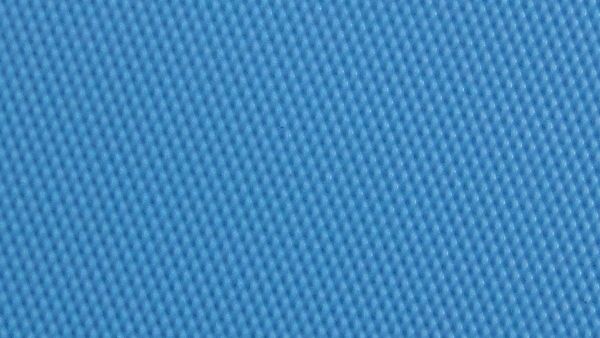

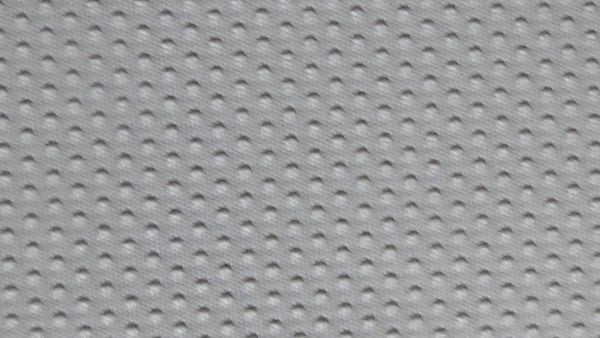

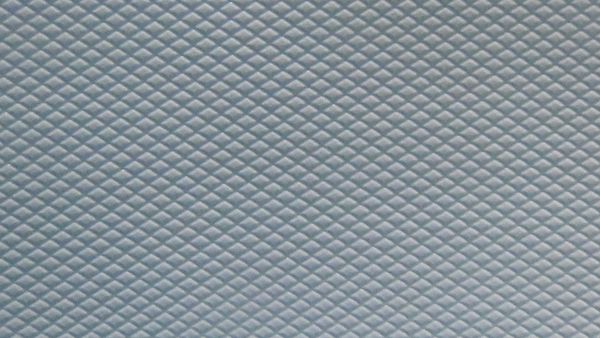

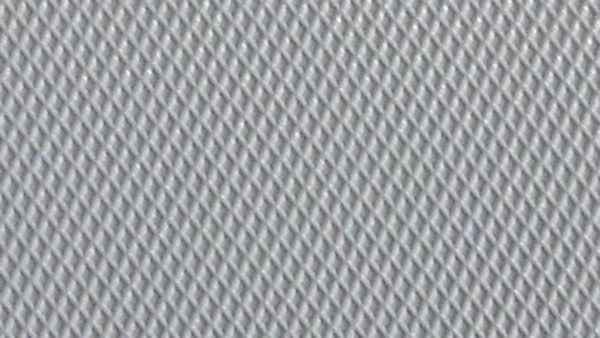

The cast embossed film line can produce various products with the net width of the film ranging from 1000 to 3500mm and weight from 14 to 60gsm. In addition, diversified embossing patterns are available upon samples or customers' request.

Features
1. We can offer different cast embossed lines that can be used for producing film with different widths. Production lines for producing maximally 3500mm width film is available.
2. Our line is easy to change embossing roll for various embossed patterns.
3. It is able to assure low variation in film thickness. That is, the end product thickness is uniform.
4. It is equipped with an on-line film edge trimmer and recycling device.
5. Its auto film winder can be equipped with different sizes of air shaft.
6. On-line extrusion film coating function is optional.
