Extrusion Coating Machine

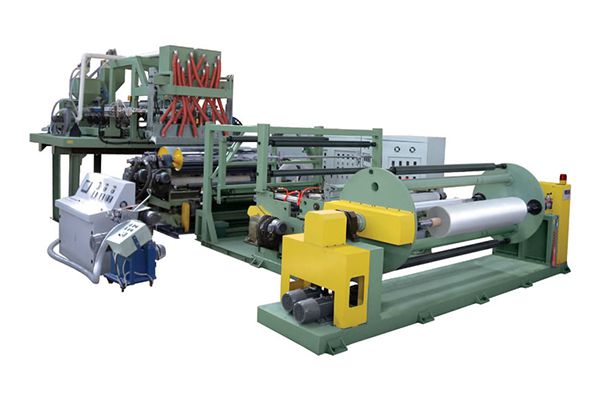

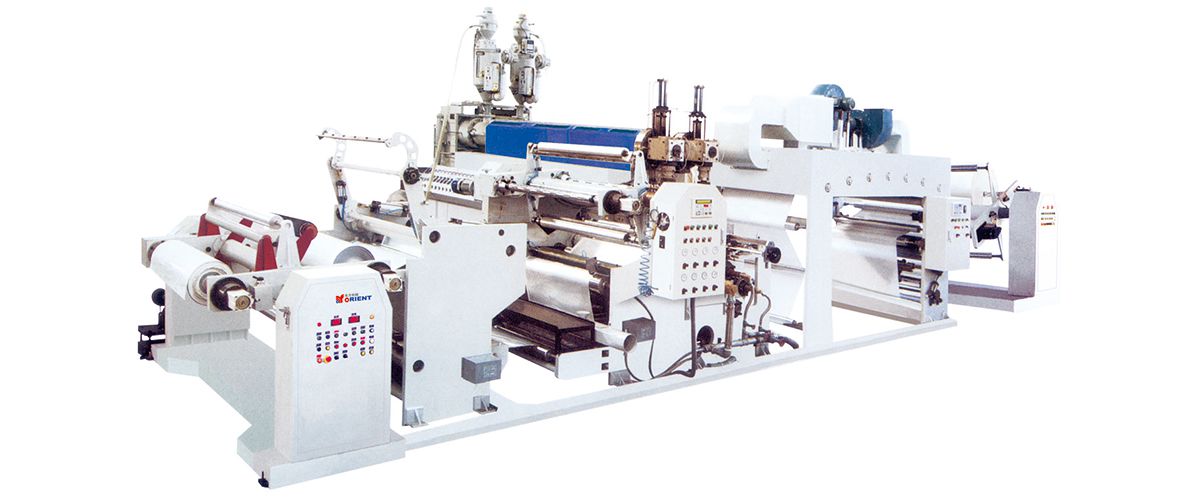

The extrusion coating machine is equipped with high-performance parts including extruder, chrome-plated chill roll, and fully-automatic unwinder and rewinder. Two or three extruders are also available to realize sandwich or double-sided coating. During the process of extrusion coating, polymer materials are coated onto substrates.

The raw materials of the extrusion coating machine are various, including LDPE, LLDPE, HDPE, PP, EVA. The substrates in process are often BOPP film, BOPET film, metalized film, nonwoven, fabric, aluminum foil, paper and paperboard. PE, PP and EVA are three commonly used resins. The coating weight of the film ranges from 8 to 60gsm and net width from 800mm to 2500mm.



Line layout

Application:
The extrusion coating machine can not only be used for PE coating with nonwoven, such as back sheet of diaper and medical dressings, but also for flexible packaging such as food bags and pouches, paper cups and food trays, barrier films, etc.

Technical Parameters
No. of Extruder Up to 3 extruders
Product Width Up to 3000mm
Coating Resin LDPE, HDPE, LLDPE, PP, EVA
Substrates BOPP film, metalized film, nonwoven, aluminum Foil, paper, fabric
Dia. of Unwinding Ф 1000mm max.
Dia. of Rewinding Ф 1000mm max
Line Speed 180m/min

Related Words
cast film extrusion coating machine, cast laminating film line, plastic film coating machine, paper coating machine, lamination machine, sandwich laminating machine.

As an experienced extrusion coating machine manufacturer and supplier in China, Orient Machinery provides a wide range of products, including hot melt glue laminating machine, cast breathable film line, multilayer cast film co-extrusion line, and more.

Feedback Form
Other Products
    1. Hot Melt Glue Laminating MachineThe hot melt glue laminating machine is mainly composed of hot melt glue spray, servo motor-controlled winder and unwinder, servo motion controller, servo automatic rectifying system and human-computer interface control, etc...

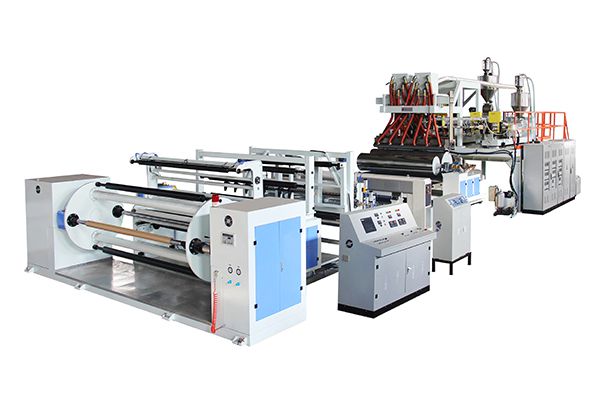

    1. CPP Cast Film Line High-quality cast polypropylene film (CPP film) is produced by the cast polypropylene/CPP film line for a wide range of packaging applications. Featured with auto thickness controlling system and efficient chill roll, the line produces CPP film of high transparency with limited gauge options, which is ideal for laminating and metalizing...
