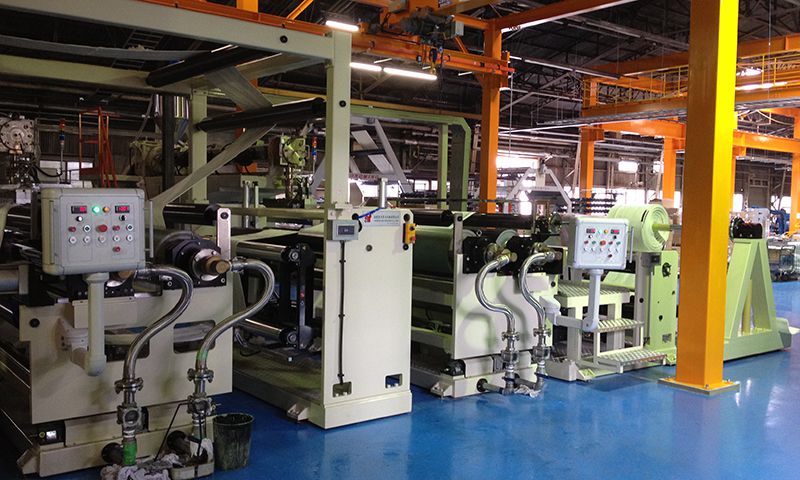

Fabric Extrusion Coating Line

Application
The typical application of fabric extrusion coating line is products such as car mat, bulk bag, drain pipe, water proof tent etc.

Technical parameters
1) Product width: 1000-4000mm
2) Resin coating: LDPE, LLDPE, EVA
3) Substrate to be coated: textile fabric
4) Unwinding diameter: Φ1200mm
5) Winding diameter: Φ 1000mm
6) Machine speed: 150m/min

Product introduction

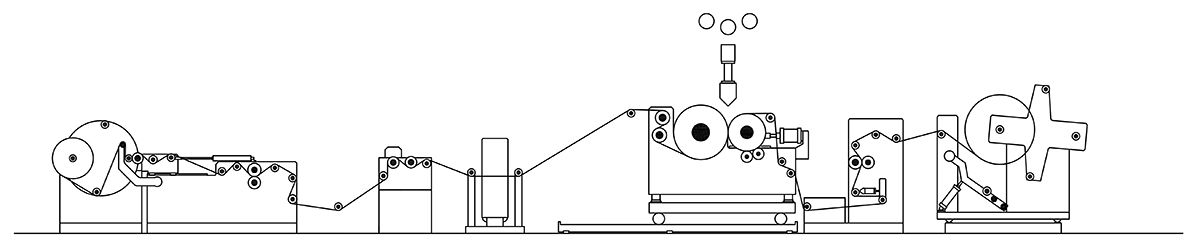

The fabric extrusion coating line is mainly equipped with high performance extruder, high precision extrusion die head, chrome plated cooling roller and high tension control system. This line can directly coat the textile fabric substrate with high temperature heating finished PE resin. It can realize coating of textile fabric substrate after laminating. The adhesive strength of PE coating and textile fabric substrate is really high.
The configuration of this line can be quite flexible. It can realize single side coating, double side coating and four-side coating by configuration of extruder and extrusion die head of different amounts. Meanwhile, we can carry out some kind of textile fabric processing such as heating and dehumidification, corona treatment before coating according to the requirements. Orient has rich experience in textile fabric coating especially for products such as car mat, bulk bag, drain pipe, water proof tent etc.

Key words:
Woven fabric coating machine, woven fabric laminating machine, extrusion coating machine for woven fabric

Feedback Form
Other Products
    1. Hot Melt Glue Laminating MachineThe hot melt glue laminating machine is mainly composed of hot melt glue spray, servo motor-controlled winder and unwinder, servo motion controller, servo automatic rectifying system and human-computer interface control, etc...

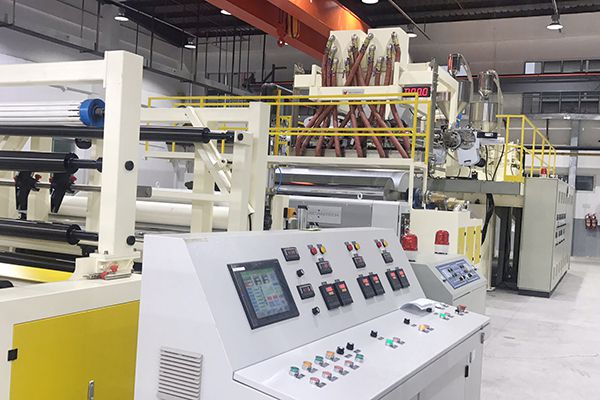

    1. CPP Cast Film Line High-quality cast polypropylene film (CPP film) is produced by the cast polypropylene/CPP film line for a wide range of packaging applications. Featured with auto thickness controlling system and efficient chill roll, the line produces CPP film of high transparency with limited gauge options, which is ideal for laminating and metalizing...
