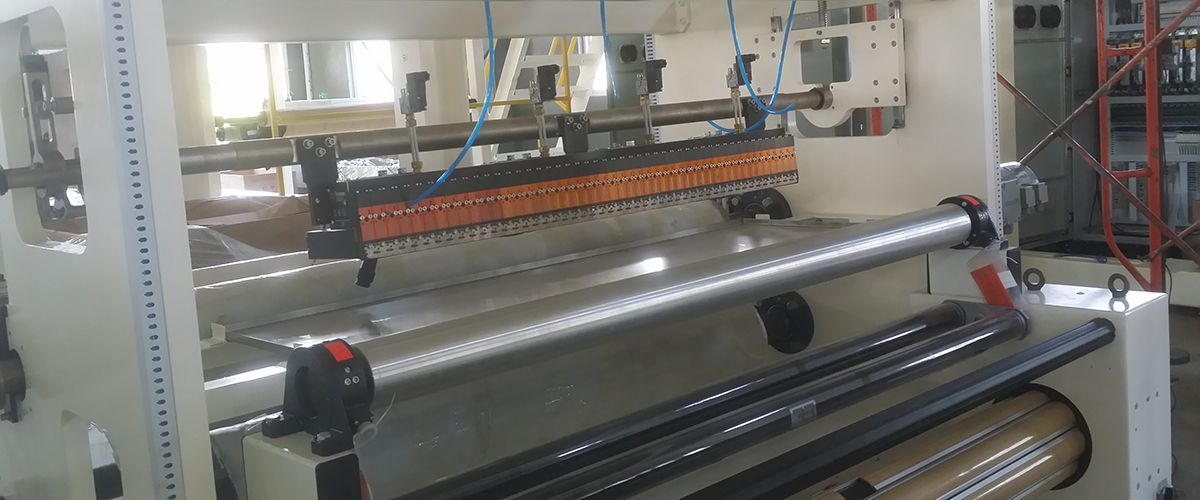

Hot Melt Glue Laminating Machine

The hot melt glue laminating machine is mainly composed of hot melt glue spray, servo motor-controlled winder and unwinder, servo motion controller, servo automatic rectifying system and human-computer interface control, etc. Since it is featured with stable tension control under full servo tension control system, new complex technique of dot glue or spread coating and small amount of glue on laminated film, it is then widely used to laminate TPU film, PE film, and breathable film with textile or nonwoven.

Application:
The hot melt glue laminating machine is suitable for garment, hygiene and medical applications, especially disposable products and health protective products, such as disposable table cloth,diapers for babies and adults, sanitary pads, medical tapes and articles for pets, etc.


Technical Parameters
Product Width Up to 2000mm
Laminating Technique Fiber Spray
Min. Hot melt Spray 1.0gsm +20%
Dia. of Unwinding Ф1200mm max.
Dia. of Rewinding Ф1000mm max.
Line Speed 10-150m/min

Orient Machinery is a specialized hot melt glue laminating machine manufacturer and supplier based in China. Our company also provides extrusion coating machine, monofilament extrusion line, cast embossed film line, and more.
