PEVA / EVA Cast Film Line

Introduction

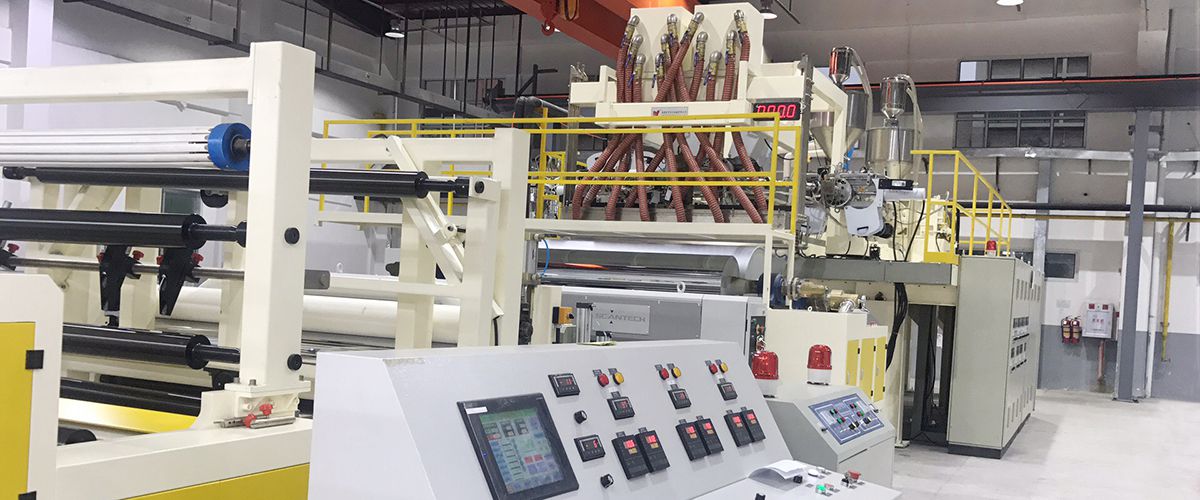

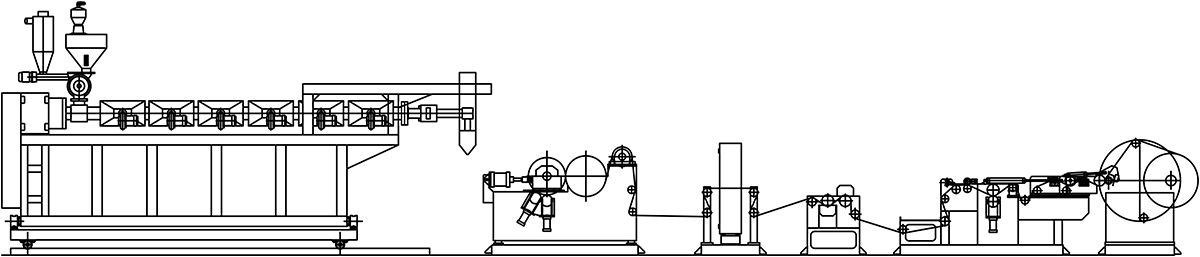

The cast film line is designed to produce PEVA and EVA films for various applications. The most optimized design of extruder and T die guarantees high-performance extrusion and various levels of features and automation are available to best meet your needs. The PEVA/EVA film plant accepts the combination of different resin materials such as EVA, LDPE, LLDPE, and HDPE to include their unique properties.

Application

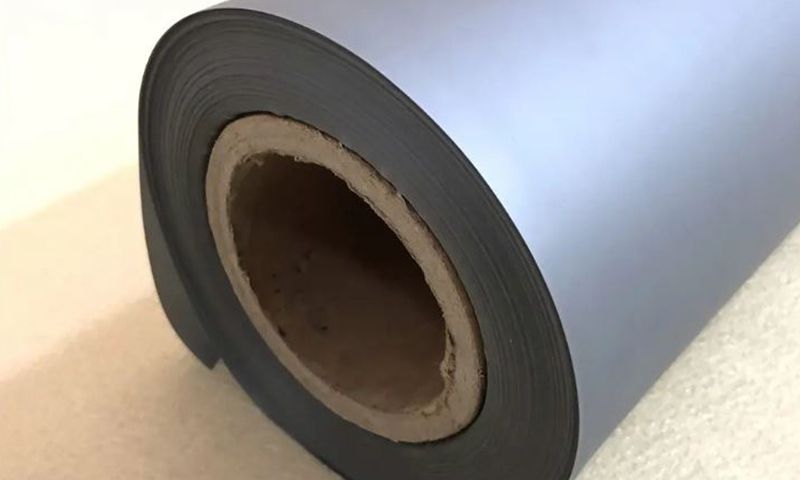

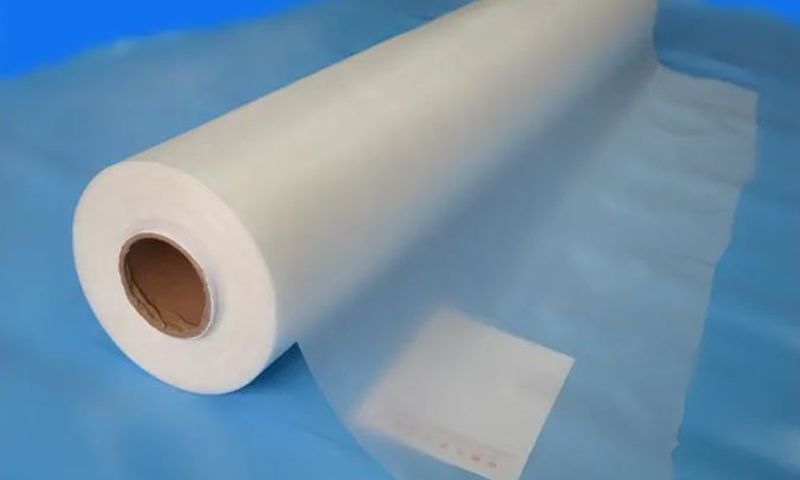

The PEVA/EVA film machine has various applications for shower curtain, gloves, umbrella cloth, table cloth, rain coat etc.

Features of the Cast Film Line for PEVA/EVA Film
1) Any film width (up to 4000mm) at customer’s disposal
2) Easy-to-change embossing roll for various emboss patterns
3) Very low variation of film thickness
4) In-line film edge trim and recycling
5) In-line extrusion coating is optional
6) Auto film winder with different size of air shaft

Technical Parameters of the PEVA/EVA Film Production Line
Model No. Screw Dia. Die Width Film Width Film Thickness Line Speed
FME120-1500 ¢120mm 1800mm 1500mm 0.02-0.15mm 180m/min
FME125-2000 ¢125mm 2300mm 2000mm 0.02-0.15mm 180m/min
FME135-2500 ¢135mm 2800mm 2500mm 0.02-0.15mm 180m/min

Related Names:
EVA film machine, PEVA film machine, cast film line for PEVA /EVA film, PEVA / EVA film production line, PEVA / EVA film plant
