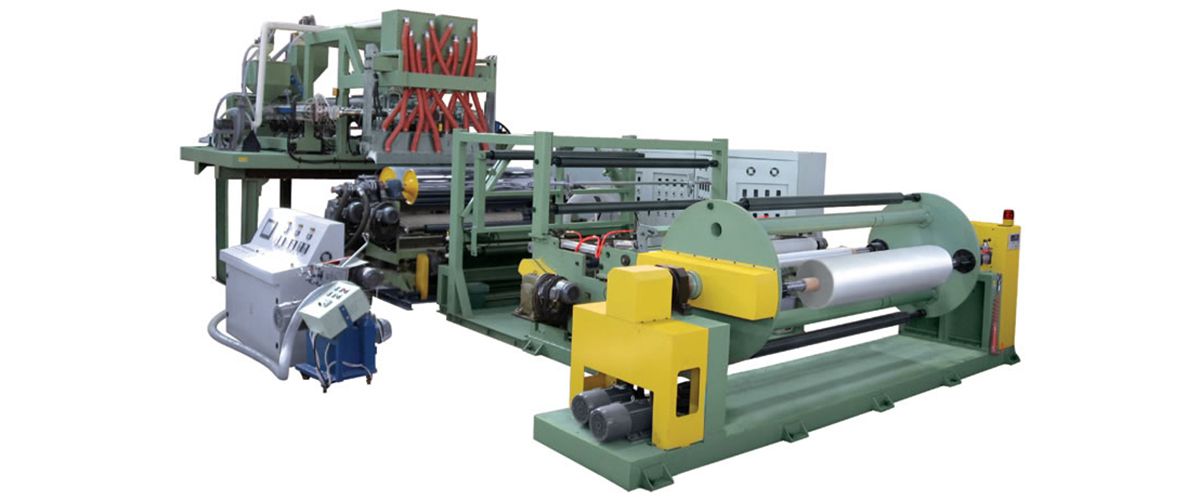

Cast Stretch Film Machine

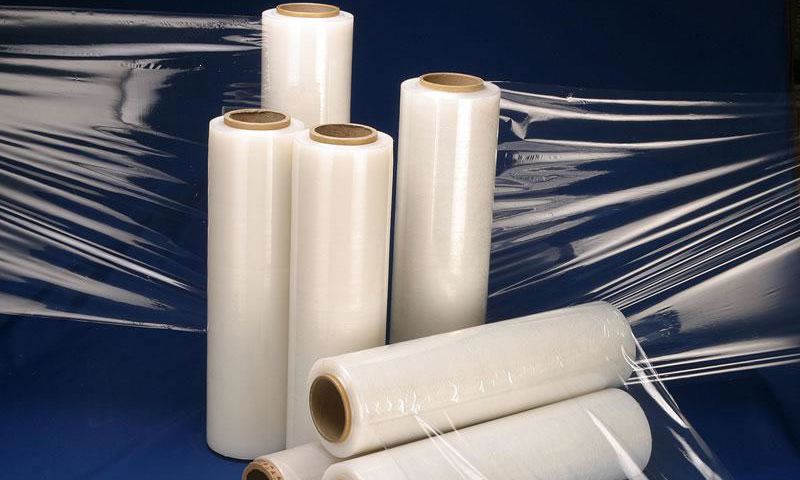

The cast stretch film machine produces PE stretch film with single-side or double-side adhesive for industrial wrapping. The raw material is mainly LLDPE, blended with some other resins such as mLLDPE. The co-extruded stretch wrapping film of 3 or 5 layers has excellent tensile strength and resistance to puncture and impact, thus making it an ideal wrapping both manually and mechanically to protect pallet or other goods during transportation.

The cast stretch film machine offers film with thickness ranging from 0.015mm to 0.050mm. The net width varies from 1000mm to 4000mm, due to adoption of multiple rolls of 500mm width. The film structures available are 1-layer, 3-layer, or 5-layer films.



Technical Parameters
Model No. FMC65/110/65-1600 FMC65/125/65-2000 FMC90/135/90-2500
Screw Dia. Ф65mm/Ф110mm/Ф65mm Ф65mm/Ф125mm/Ф65mm Ф90mm/Ф135mm/Ф90mm
Screw L/D 36:1 36:1 36:1
Die Width 2000mm 2400mm 2900mm
Film Width 1600mm 2000mm 2500mm
Film Thickness 0.015-0.050mm 0.015-0.050mm 0.015-0.050mm
Line Speed 250m /min 250m /min 250m /min
Remarks: The film width and layers of film are upon your request.

Features
1. Equipped with air knife and chill roller of high performance, the cast stretch film machine ensures various options of coextruded film structure layers and film width.
2. The automatic film thickness controlling and auto film winding highly improve the performance of the machine.
3. The on-line edge trim and recycling helps reduce the cost.

Related Words:
cast stretch film line, cast stretch film extrusion line, cast film line for stretch film, cast stretch film extrusion machine.

As a China-based cast stretch film machine manufacturer, Orient Machinery offers a broad range of products that includes cast polypropylene / CPP film line, perforated film machine, special cast film line, monofilament extrusion line, and more.
