Multi-layer Cast Film Line

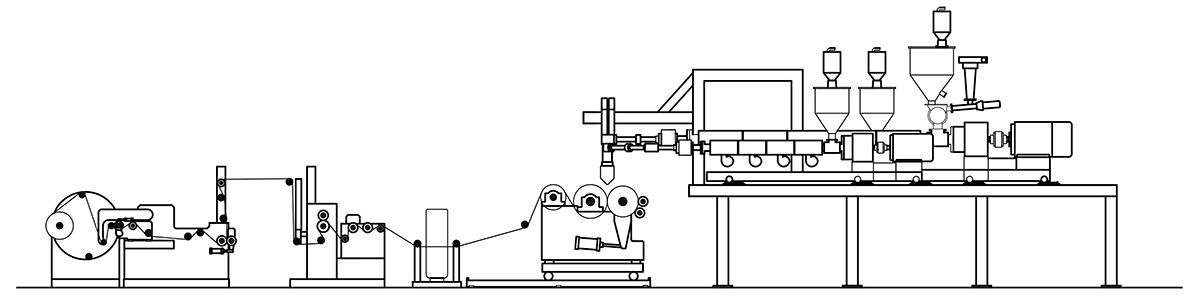

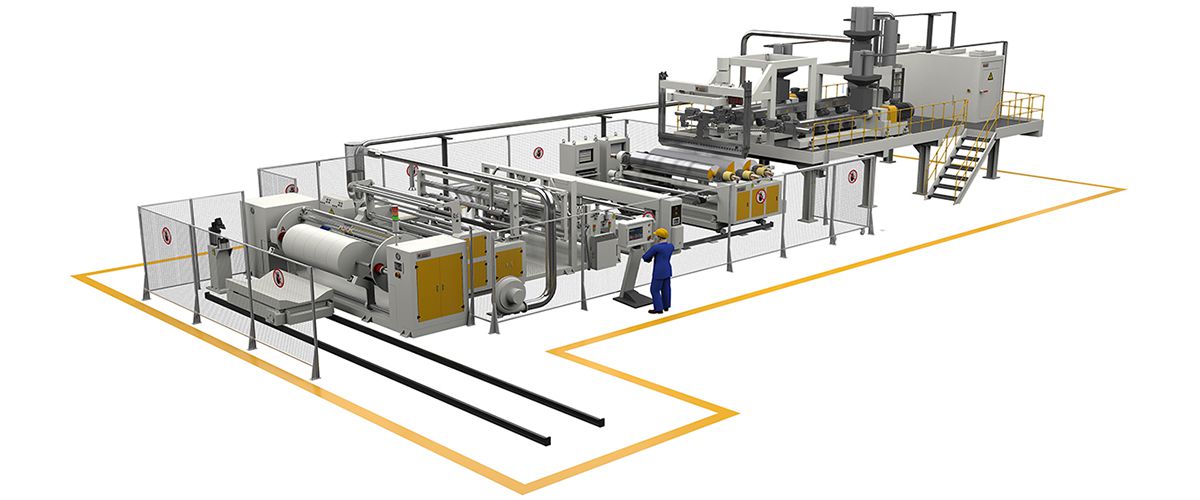

The multi-layer cast film line uses co-extrusion to optimize film performance for hygiene, medical and packaging applications. It offers many options, such as 2-layer, 3-layer and 5-layer co-extruded film structure. The number of co-extrusion layers depends on the market need.

Varying from reducing resin cost to improving film properties and appearance, the advantages of co-extrusion are versatile: to improve film tensile force; to improve heat sealability and printability; to reduce resin cost by using the recycled or re-processed in an inner film layer; to produce two-color film using different color resins.

Application

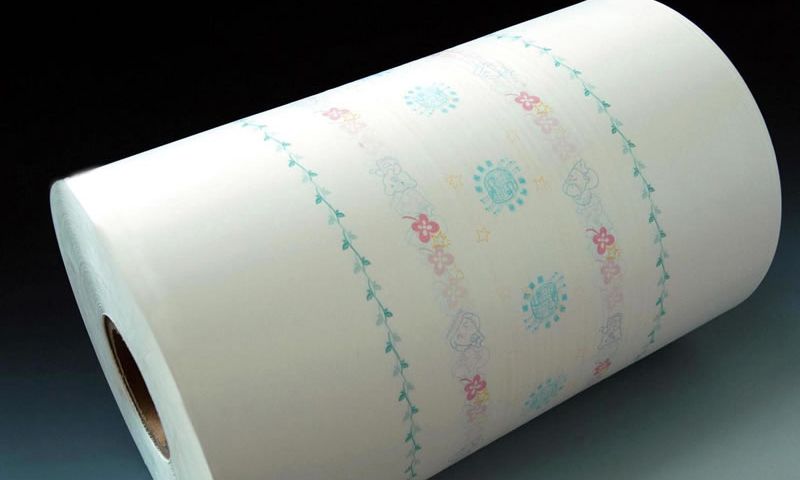

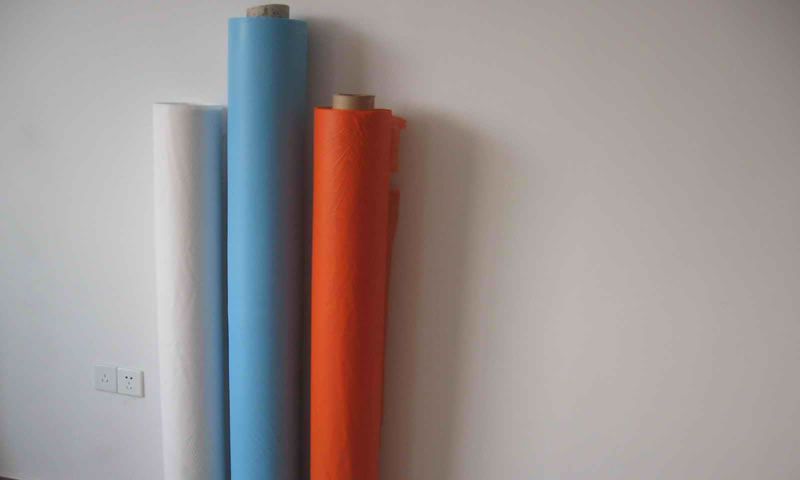

The multi-layer co-extrusion process is applicable for CPE film, CPP film, stretch film, cling film, masking film, agricultural film, medical film, as well as barrier film for packaging food such as meat, snack, bakery, frozen food, and so forth.

Technical Parameters
Model No. FMC65/110/65-1600 FMC65/120/65-2000 FMC90/150/90-3000
Screw Dia. Ф65mm/Ф110mm/Ф65mm Ф65mm/Ф120mm/Ф65mm Ф90mm/Ф150mm/Ф90mm
Screw L/D 36:1 36:1 36:1
Die Width 1800mm 2300mm 3300mm
Film Width 1500mm 2000mm 3000mm
Film Thickness 0.02-0.150mm 0.02-0.150mm 0.02-0.150mm
Line Speed 180m /min 180m /min 180m /min
Remarks: The film width and layers of film are upon your request.

Features
1. The multilayer cast film co-extrusion line can produce films with a very small thickness variation.
2. We can offer production lines for manufacturing maximally 4000mm width film.
3. The equipment can realize the functions of on-line film edge trimming and edge trim recycling.
4. The auto film winder comes with different sizes of air shaft.
5. The co-extrusion line can be optionally designed with on-line extrusion film coating function.

The multilayer cast film co-extrusion line is comprehensively applied in hygiene, medicine and packaging industry, such as hygiene film, medical film, CPP film, stretch film, cling film, masking film, barrier film for packaging food such as snacks, bakery products, meat and frozen food, etc.

Related Words:
multilayer cast film co-extrusion machine, cast film extruder, cast film machine, cast PE film line

As a professional multilayer cast film co-extrusion line manufacturer based in China, we also provide barrier film extrusion line, extrusion coating machine, monofilament extrusion line, and hot melt glue laminating machine, among others.

Related Names:
Multi-layer Cast Film Machine
